Parameter:

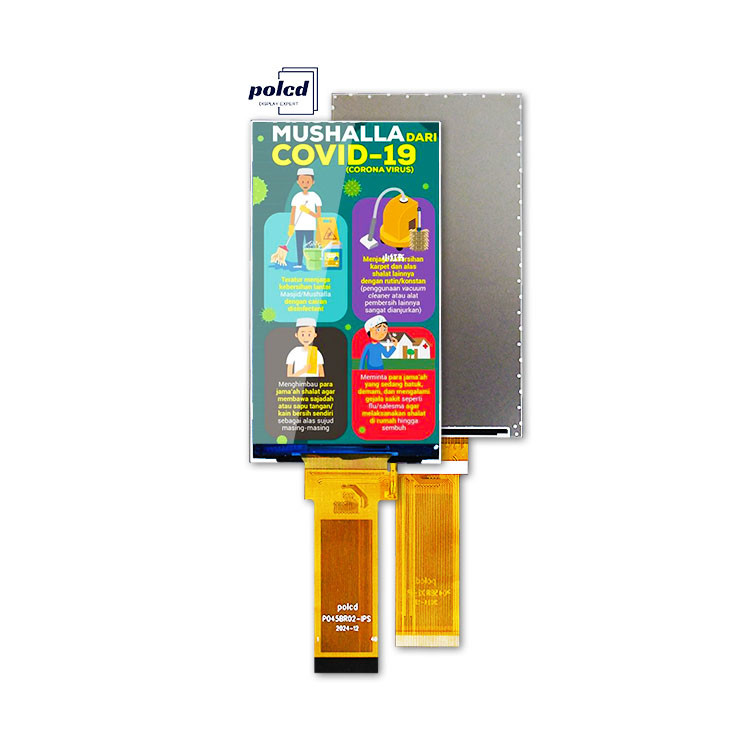

| Model | P045BR02-IPS |
| Screen Size | 4.5 inch |
| Number of Pixel | 480RGB(H)x854(V) |
| Pin | 40 pin |
| Display area | 55.44(H)x98.64(V)mm |
| Pixel pitch | 0.1155(H)x0.1155(V)mm |
| Outline Dimension | 60x109x2.15mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| LCM IC | GC9503V |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |
